Vertical Suspension Rail Gear - Carry Deck Cranes

Description:
Vertical Suspension Rail Gear - Carry Deck Cranes

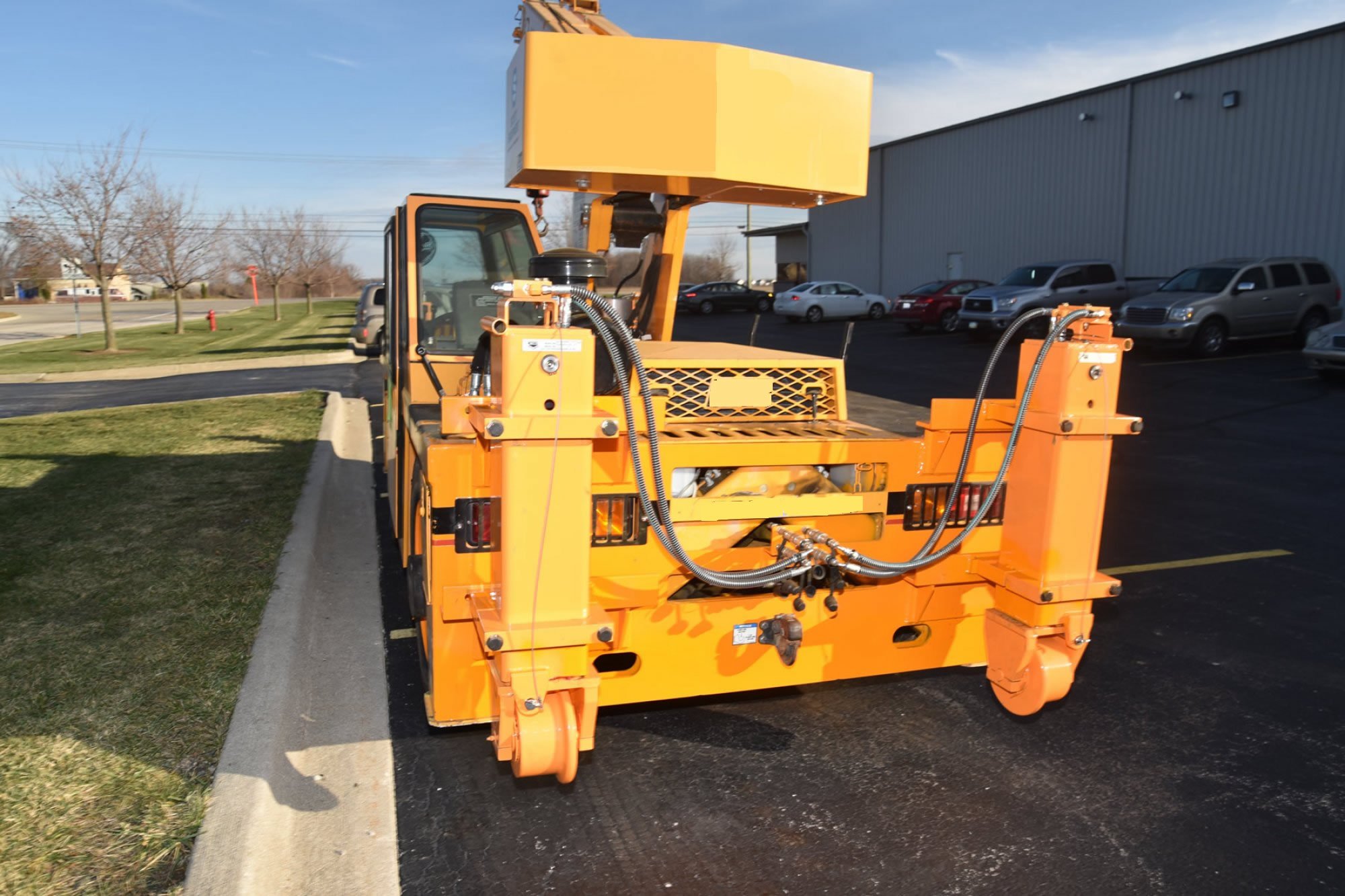

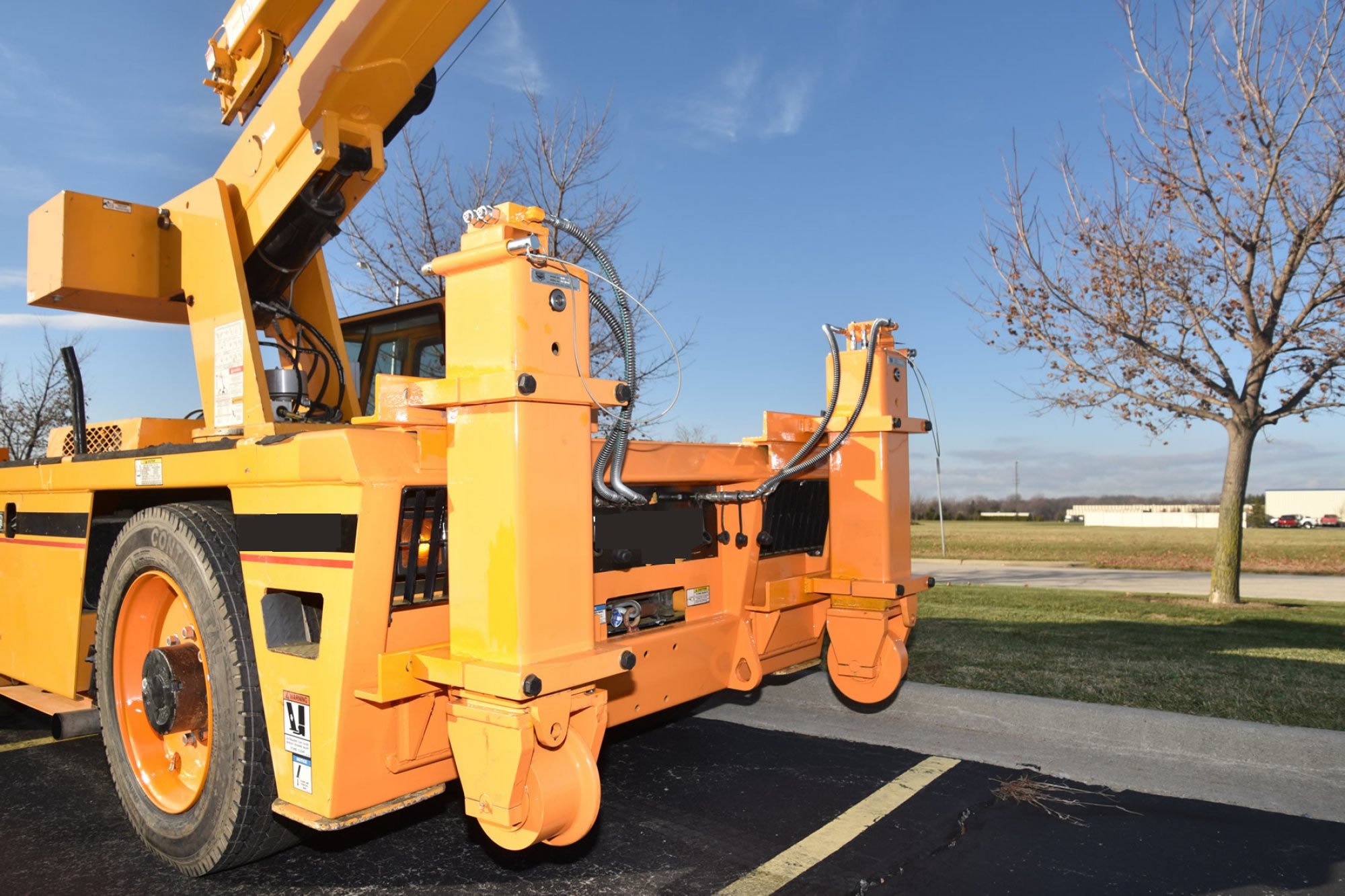

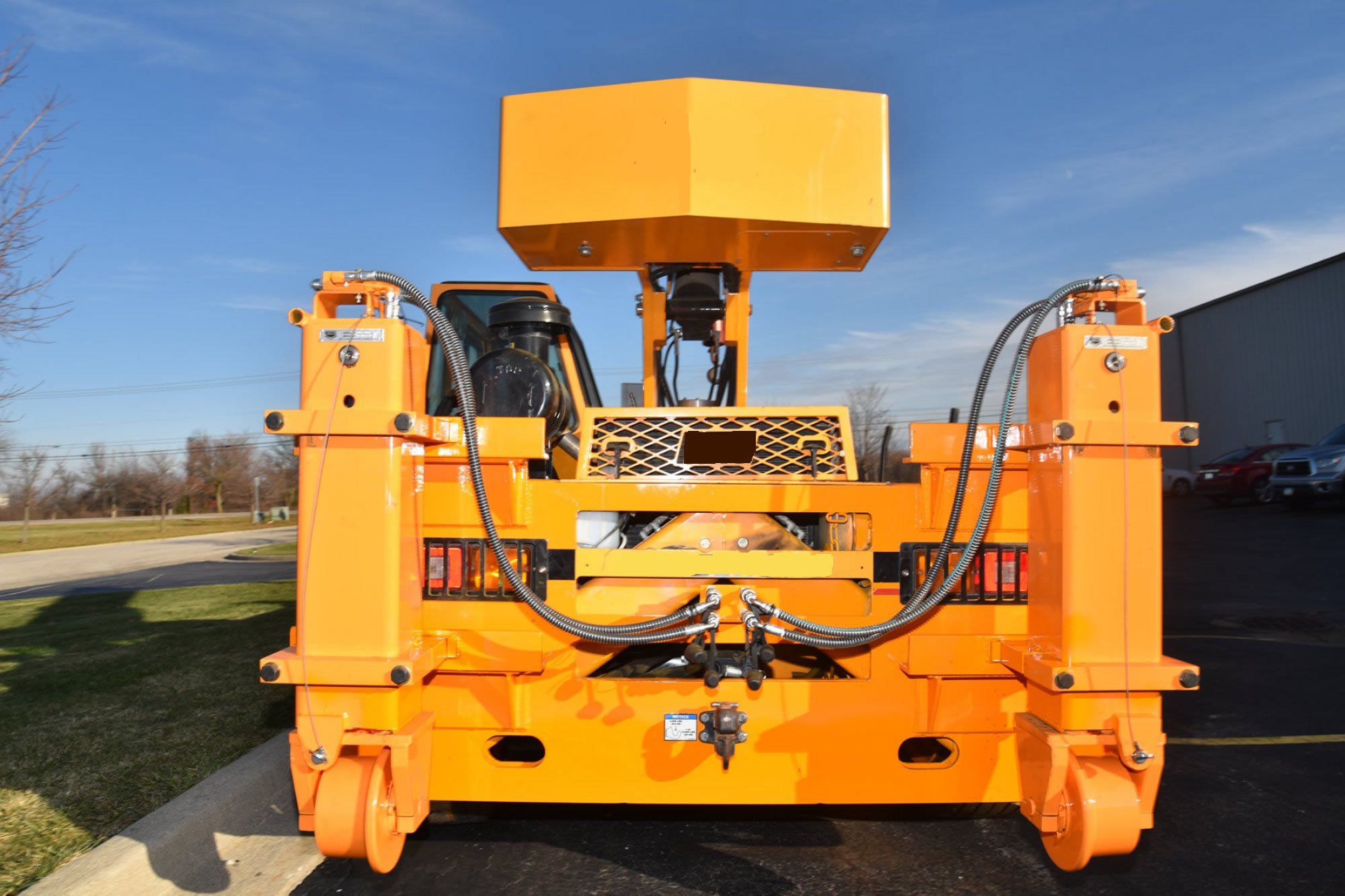

The Mitchell Vertical Suspension Rail Gear for Carry Deck Crane has built-in spring suspension. The 4-cornerr Guide wheel assemblies bolt-on after the mounting kit is welded to the machine frame. The guide wheel assemblies are adjustable for setting rail gauge and proper loading. Once deployed on rail the guide wheels spring suspension will compensate for uneven track. The guide wheels are secured in the re-track position with a pin.
A typical crane to use for this system would be a Grove Shuttlelift GCD09 Carry Deck Crane.
Mitchell also offers their Friction Drive Hi-Rail Gear for larger Grove Shuttlelift Carry Deck Cranes such as the Grove Shuttle Lift SCD15 - 15 Ton, SCD20 - 20 ton and SCD25 -25 ton cranes.
